Sibo has focused on potentiometers and sensors for 30 years.

MPH22
MPH22

MPH22

Precision Motor-Potentiometer

瀏覽量： Time: 2025-04-02

    Characteristics：

  • Precision Motor-Potentiometer

  • RoHS Compliant

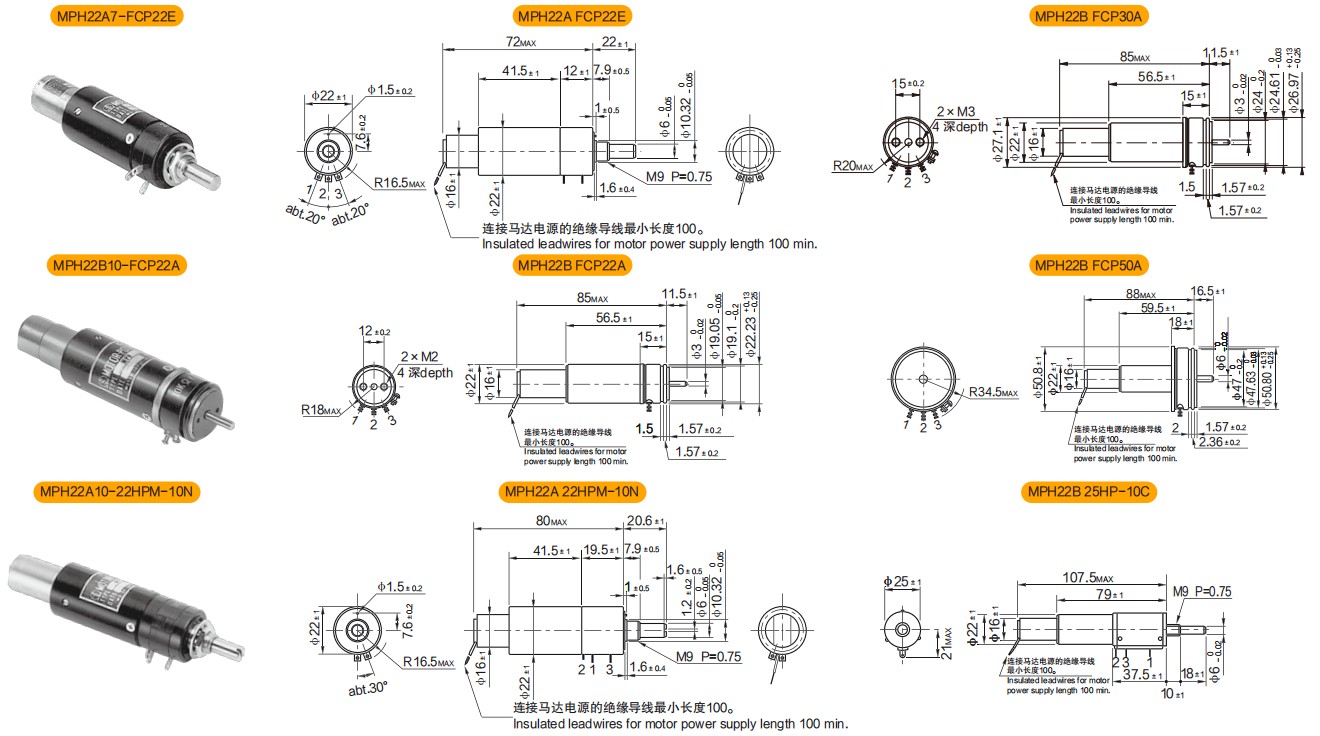

Dimension


Parameter

General Specifications

Code of Coupled Motor

A、B

Code of Reduction Gear

5～11

Coupled Potentiometer

CP22, CP50, 22HP-10, 25HP-10, 22HHP-10, FCP22E, FCP22A, FCP30A, FCP50A

Rated Specifications of Coupled Motor A

Input Voltage

6V.D.C.

Max.Output

0.26W

Starting Torque

0.52mN?m (5.2gf?cm)

Max.Efficiency

65%

No-Load Speed

19,100 r.p.m.

Rated Specifications of Coupled Motor B

Input Voltage

6V.D.C.

Max.Output

0.43W

Starting Torque

1.55mN?m (15.5gf?cm)

Max.Efficiency

70%

No-Load Speed

10,700 r.p.m.

Specifications of Coupled Potentiometer

Specifications of Potentiometer

For further technical details of potentiometers, please refer to the potentiometer sections of each model in the brochure
