Sibo has focused on potentiometers and sensors for 30 years.

CP22C
CP22C

CP22C

1-turn Wire-wound POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Single turn

  • Wirewound

  • Bushingmount

  • Low-cost Item

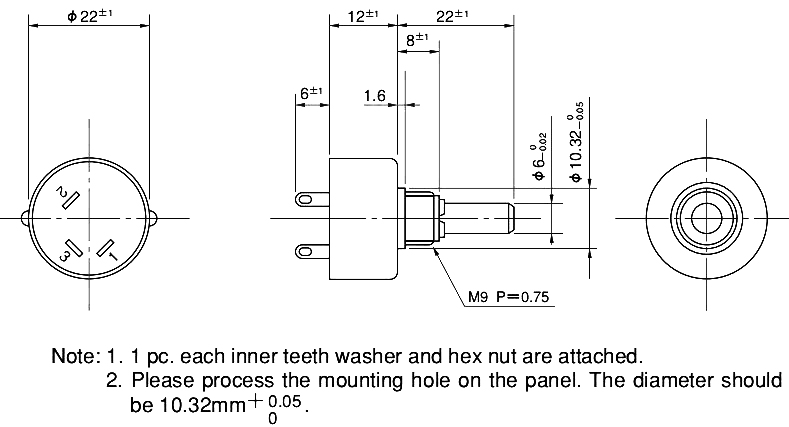

Dimension


Parameter

一般規(guī)格

Standard Resistance Range

50Ω～10KΩ

Max. Practical Resistance Value

20KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class±0.25%, (±0.3％ in case of within 1kΩ )

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Travel

355°±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN·m(50gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.23g

Special Specifications Available

Special resistance value

Lower resistance values (10Ω , 20Ω )

Special shaft type

Shaft with front and rear extension (Rear shaft with 3mm dia. and 20mm length), shaft dia. (φ 6.35mm) ＆ bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Special tap

Extra tap (Available up to 1 tap)

With stopper

Rotating angle is 320°and stopper strength is 0.9N?m [9kgf?cm])
