Sibo has focused on potentiometers and sensors for 30 years.

RMP30H
RMP30H

RMP30H

1-turn Contactless Magnetic POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Magnetic rotary sensor (Hall effect)

  • Seesaw

  • Low-cost Item

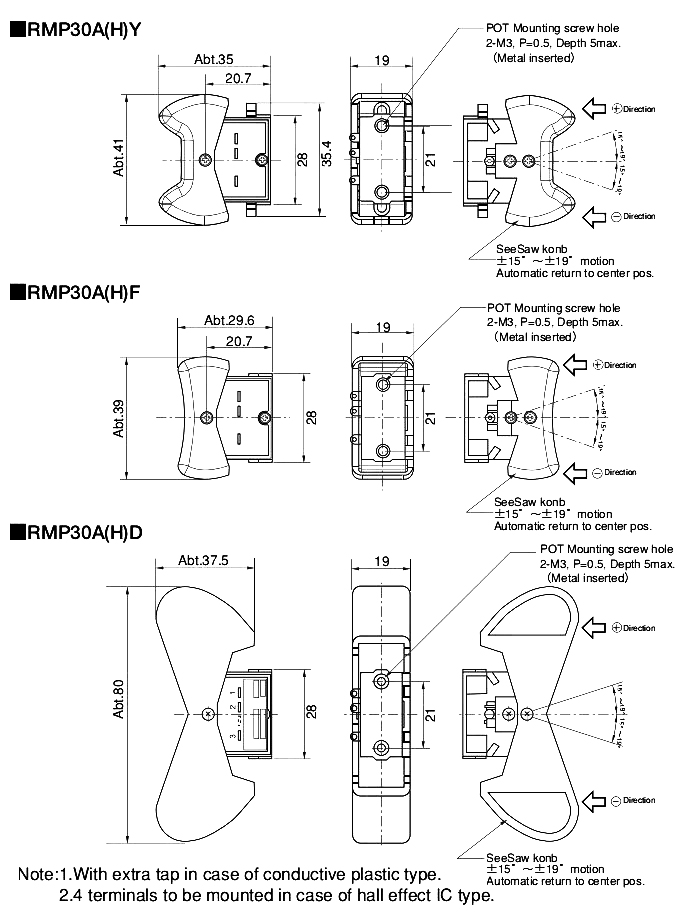

Dimension




Parameter

General Specifications

Current Consumption

Approx. 7mA (Dual output type:Approx. 14mA)

Independent Linearity Tolerance

±3% FS

Applied Voltage

5V.D.C.±10%

Load Resistance

>10KΩ

Output Voltage range

Approx. 10%～90% Vin

Effective Electrical Angle

30°±5°

Operating Angle Range

±15°～±19°from center position

Center Returning Accuracy

50%±3%

Insulation Resistance Over

100MΩ at 250V.D.C.

Dielectric Strength

1 minute at 250V.A.C.

Operating Force

Approx. 24mN?m～Approx. 30mN?m(D type knob: Approx. 48mN?m～60mN?m)

Output Temperature Characteristic

Within ±2.5% Vout?FS

Drift at Center Position

Within ±0.9% Vout?FS

Mass

Approx. 20g

Environmental Specifications

Operating Temperature Range

-20℃～+60℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Protection Grade (IP)

IP65

Life Expectancy

Approx. 5,000,000 operations

EMC Durability

100V/m

ESD Durability

±8kV contact discharge/ ±15kV aerial discharge (Based on IEC 61000-4-2)

Special Specifications Available

Special output

Dual output, dual independent output

Special operating force

Heavier operating force(not available for D type knob)
